Palazzoli Explosion Proof LED Lighting is designed for safe operation in hazardous environments where explosive gases or dust may be present. Built to meet ATEX & IECEx standards, these luminaires provide high-performance illumination with maximum safety, durability, and efficiency.
|
TIGUA-EX Floodlights in aluminium alloy IP66 zones 1-2 (GAS) and 21-22 (DUST) Floodlights in aluminium alloy from 5800lm up to 16550lm, IP66, for zones 1, 2, 21, 22 817021EX 817042EX Very high temperatures floodlights in aluminium alloy IP66 zones 1-2 (GAS) and 21-22 (DUST) +70° |
 |
 |
X-TIGUA Floodlights in aluminium alloy IP66 zones 1-2 (GAS) and 21-22 (DUST) Floodlights in aluminium alloy from 17350lm up to 33100lm, IP66, for zones 1, 2, 21, 22 |
|
RINO-EX ATEX ATEX watertight oval and round light fixtures in aluminium alloy with lamp holder E27, IP65, for zone 22 RINO-EX ATEX watertight oval and round light fixtures in aluminium alloy are suitable for applications in explosion hazardous areas as defined in ATEX Directive 2014/34/EU. The steel wire protection cage is coloured in RAL 2011 deep orange and is attached to the body by means of stainless steel screws while the sealing is guaranteed by a reinforced gasket in non-ageing elastomer. The body of the light fixture is treated with ecological anti-corrosion passivation with fluoro-zirconium and finished with hot polymerised scratch-resistant non-toxic non-ageing polyester painting. |
  |
 |
RINO-EX Very high temperature LED light fixture in stainless steel-glass lenght 690 mm IP66 zone 1-2 (GAS) and 21-22 (DUST) +70°C High efficiency ATEX LED light fixtures in stainless steel from 3400lm up to 12350lm, IP66, for zones 1, 2, 21, 22 Optional : Emergency Backup 1-3 hours |
 |

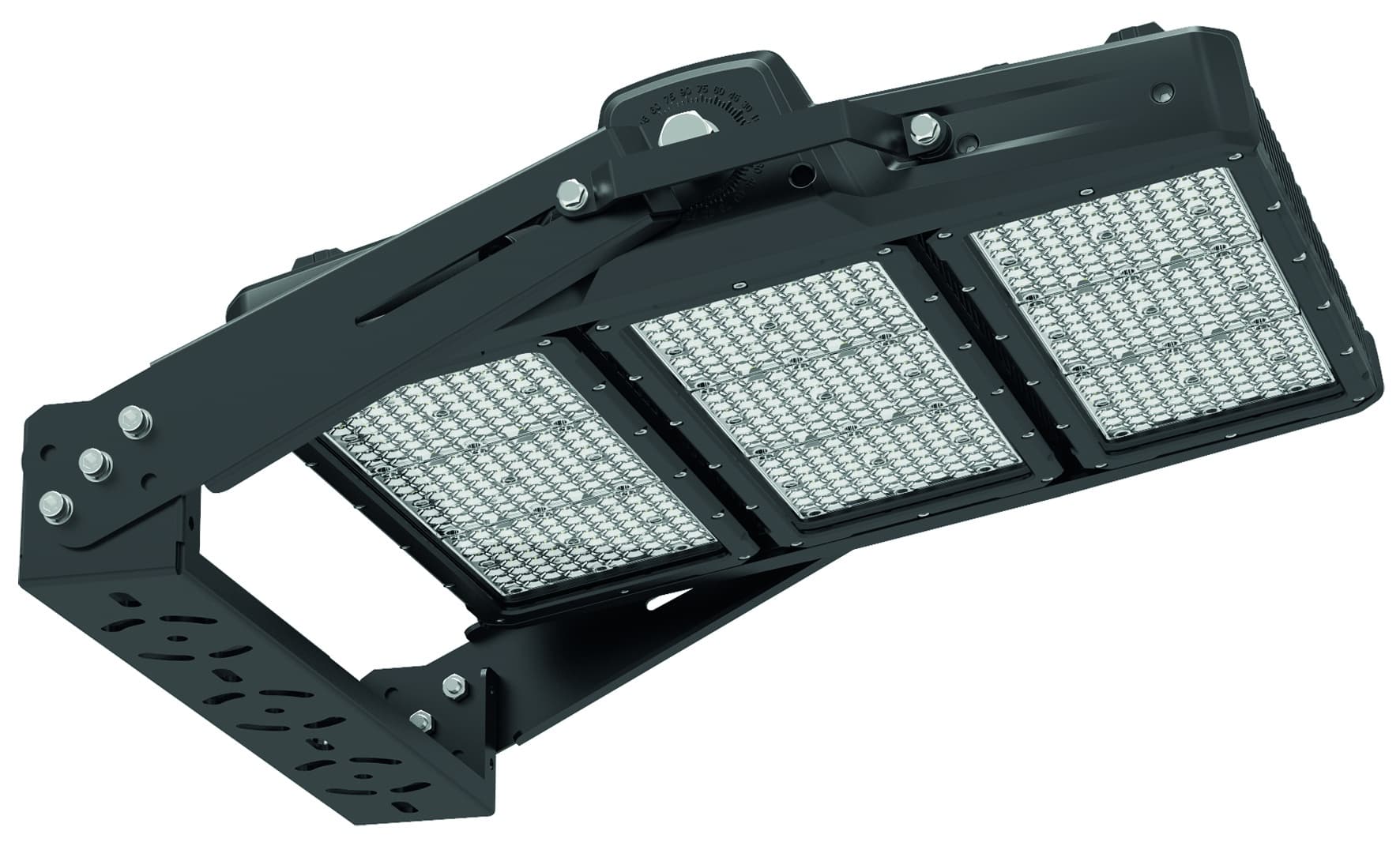

DARWIN Floodlights in aluminium alloy from 60000lm up to 190000lm, IP66 The body is made of die-cast aluminum alloy for the best resistance even in harsh environments. The diffuser is made of 4mm thick, tempered, extra-clear flat glass, resistant to impacts and UV rays. The compact and modular solution allows achieving high luminous flux solutions, up to 195,000 lm, with an efficiency of 162 lm/W. The range of optics, both asymmetric and symmetric, enables the creation of solutions with excellent illumination of the underlying areas. The driver is protected from weather conditions and UV rays by a housing, and upon request, it can be remotely operated. In the range, there are HT versions available, ensuring operation even at ambient temperatures up to +70°C. The solution is compatible with the DALI protocol and can be integrated into control systems for device management. |
|
FLIGHT Floodlights in aluminium alloy from 5250lm up to 10370lm, IP66 Flight Series Floodlight 20led 35w 65° Roadway Wide Optic |
 |
 |
META LED floodlights with roto-symmetrical optics in aluminium alloy from 9000lm uo to 20000lm, IP66 / IP67 META LED floodlights with asymmetrical narrow beam optics are suitable for lighting outdoor areas and sports facilities.Equipment included: adjustable bracket for wall-mounting or mounting on load-bearing structures (poles, light towers). Power supply with 5P quick connector.Professional LED floodlights glass diffuser IP66/IP67 |
Palazzoli ATEX Pendant & High-Bay Lights
- Models: TIGUA-EX / XTIGUA-EX
- Type: Pendant / High-Bay LED
- Lumens: up to 33,100 lm
- Zones: Zone 1, 2, 21, 22
- Material: Aluminium alloy, corrosion-resistant housing
These are commonly used in Oil & Gas Plants And Offshore Platforms

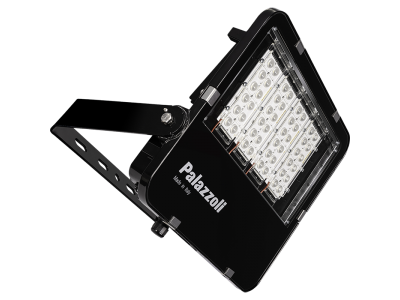

Palazzoli ATEX Floodlights (Heavy Duty Outdoor)
- Type: Floodlight (Wide beam / Yard lighting)
- Designed for harsh environments & marine conditions
- High resistance to UV, corrosion, and vibration
Ideal for refineries, storage tanks, outdoor hazardous areas

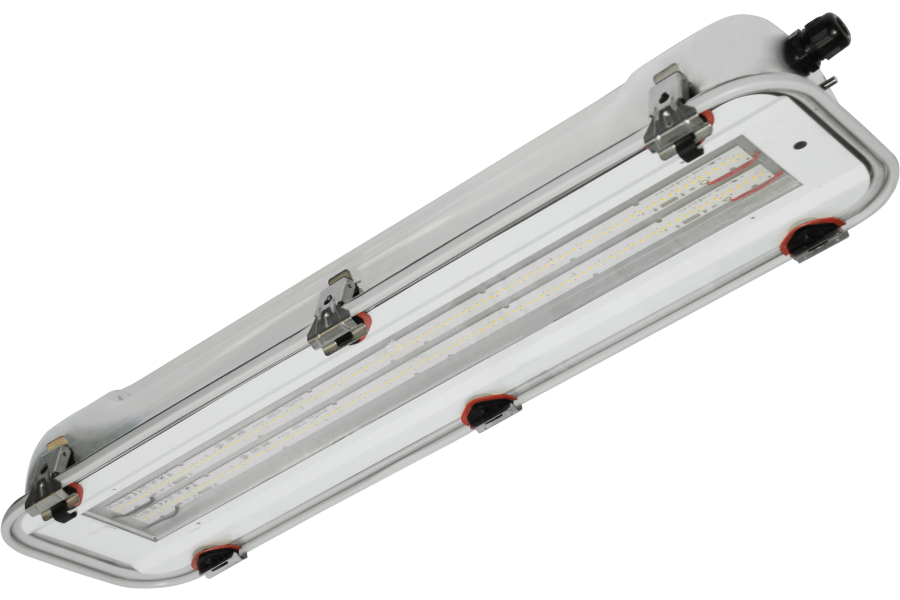

Palazzoli ATEX Linear / Bulkhead Lights (RINO-EX)
- Type: Linear / Tube light style
- Lumens: 3,400 – 12,350 lm
- Material: Stainless steel (AISI 304)
- IP66 protection
Best for Walkways, Tunnels, Cable Trays, Indoor Hazardous Zones
| Model No. | Wattage | Luminous Output (Lumens) | Zone | Application |
|---|---|---|---|---|
| PX-EX-20 | 20W | 2,400 lm | Zone 1, 2 | Small Areas / Panels |
| PX-EX-40 | 40W | 4,800 lm | Zone 1, 2 | Industrial Lighting |
| PX-EX-60 | 60W | 7,200 lm | Zone 1, 2 | Warehouses / Plants |
| PX-EX-80 | 80W | 9,600 lm | Zone 1, 2 | Outdoor / Yard |
| PX-EX-100 | 100W | 12,000 lm | Zone 1, 2 | High Bay Areas |
| PX-EX-150 | 150W | 18,000 lm | Zone 1, 2 | Large Industrial Areas |
| Parameter |
Details
|
|---|---|
| Brand | Palazzoli |
| Type | Explosion Proof LED Lighting |
| Certification | ATEX / IECEx |
| Protection | IP66 / IP67 |
| Material | Die-Cast Aluminium / Stainless Steel |
| Mounting | Ceiling / Wall / Pendant / Pole |
| Operating Temp |
-20°C to +55°C |
