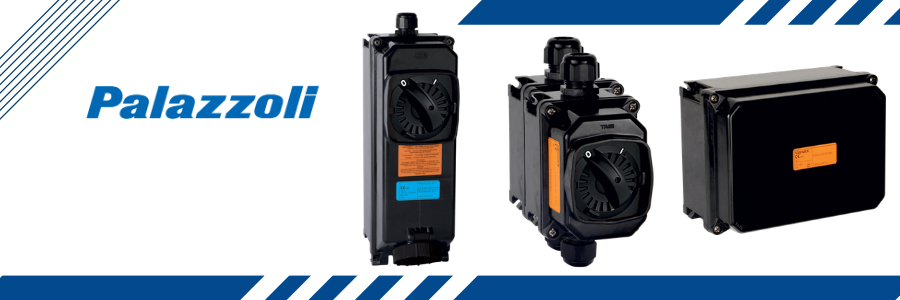

Palazzoli ATEX Interlocked Socket Outlets are manufactured from high-quality antistatic thermosetting GRP material, ensuring maximum safety and durability in hazardous environments. Designed for industrial reliability, these sockets are available from 16A to 63A and feature an interlocking system that prevents accidental plug removal under load. With IP66 protection, they are highly resistant to dust, water, and harsh operating conditions. Suitable for use in ATEX Zones 2, 21, and 22, these socket outlets are ideal for oil & gas, petrochemical, marine, and heavy industrial applications where explosion-proof safety is essential.
|

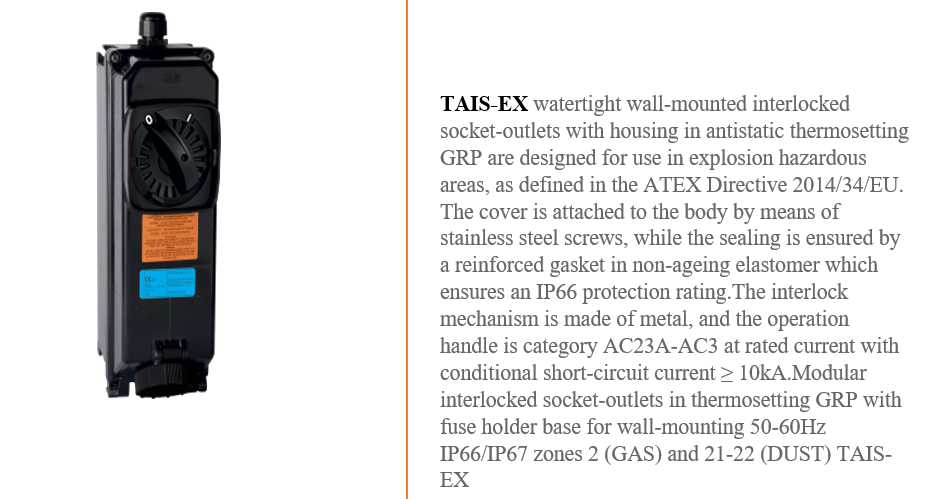

TAIS-EX watertight wall-mounted interlocked socket-outlets with housing in antistatic thermosetting GRP are designed for use in explosion hazardous areas, as defined in the ATEX Directive 2014/34/EU. |
 |
 |

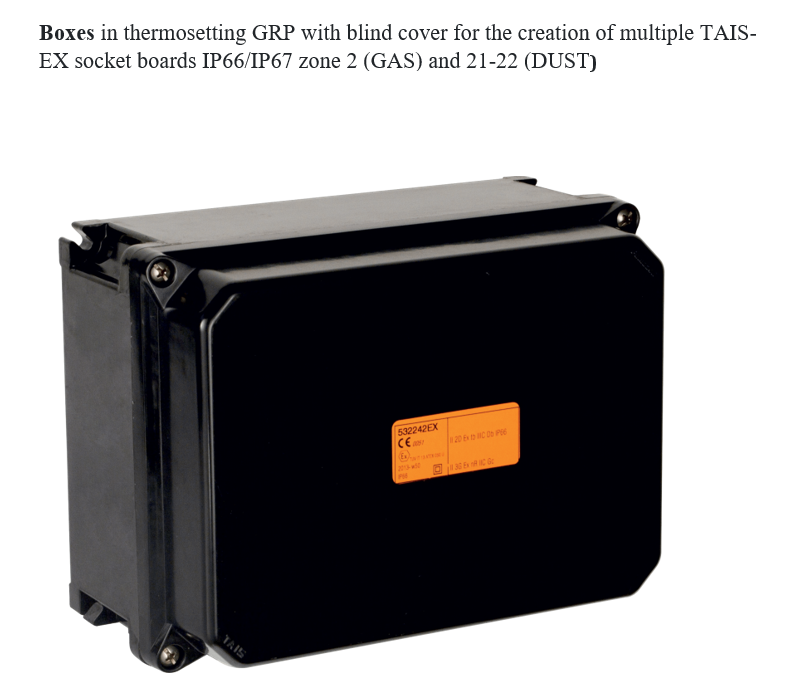

Boxes in thermosetting GRP with blind cover for the creation of multiple TAIS-EX socket boards IP66/IP67 zone 2 (GAS) and 21-22 (DUST) |
|

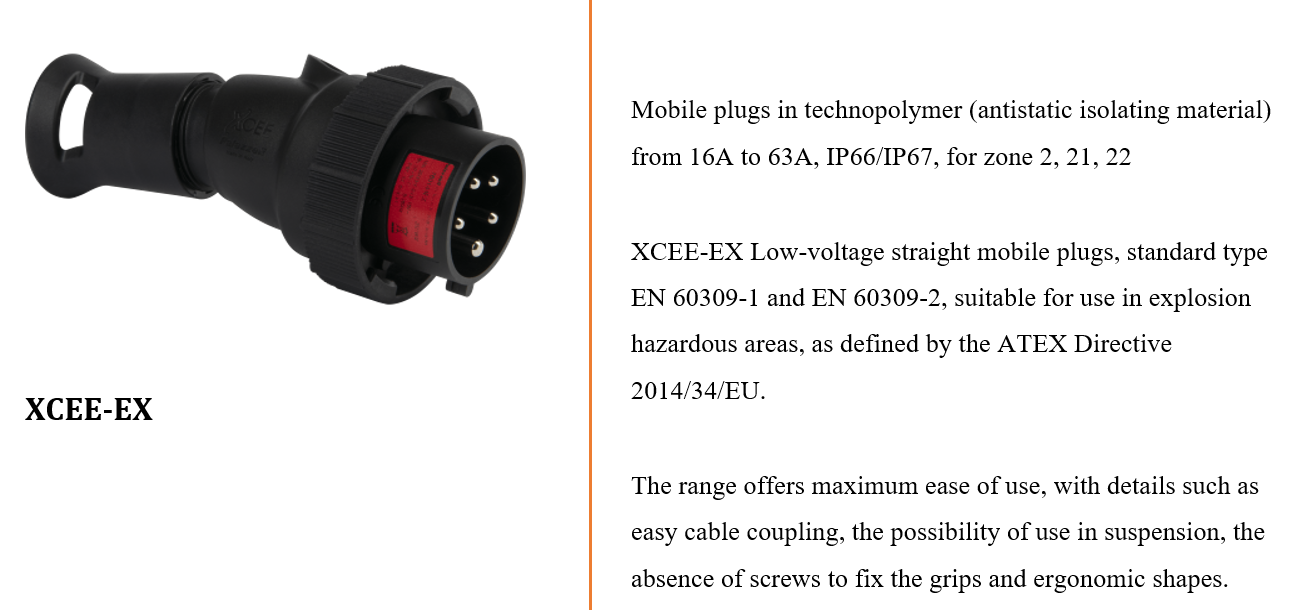

XCEE-EX Mobile plugs in technopolymer (antistatic isolating material) from 16A to 63A, IP66/IP67, for zone 2, 21, 22 XCEE-EX Low-voltage straight mobile plugs, standard type EN 60309-1 and EN 60309-2, suitable for use in explosion hazardous areas, as defined by the ATEX Directive 2014/34/EU. The range offers maximum ease of use, with details such as easy cable coupling, the possibility of use in suspension, the absence of screws to fix the grips and ergonomic shapes. |
 |
 |
Isolator switches thermosetting GRP for wall-mounting 50-60Hz IP66 zone 2 (GAS) and 21-22 (DUST) The cover is attached to the body with stainless steel screws while the sealing is ensured by a gasket in non-ageing elastomer. Complete with earthing terminal inside the box. The load is of AC23A-AC3 type at rated current with short-circuit conditional current ≥ 10kA. Mechanical life of over one million operations. |
|

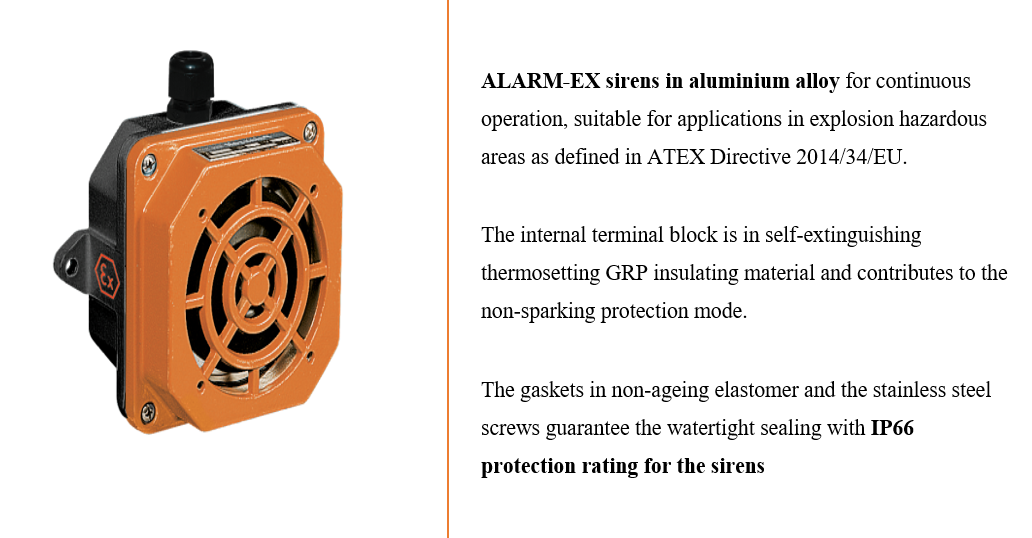

ALARM-EX sirens in aluminium alloy for continuous operation, suitable for applications in explosion hazardous areas as defined in ATEX Directive 2014/34/EU. The internal terminal block is in self-extinguishing thermosetting GRP insulating material and contributes to the non-sparking protection mode. The gaskets in non-ageing elastomer and the stainless steel screws guarantee the watertight sealing with IP66 protection rating for the sirens. |
 |
 |
TAIS MIGNON-EX
Switches and push-buttons belonging to the TAIS MIGNON-EX series are made of the Palazzoli antistatic thermosetting GRP and are suitable for applications in areas at risk of explosive atmospheres as defined in ATEX Directive 2014/34/EU. The cover is attached to the back box by means of stainless steel screws, while the sealing is guaranteed by a gasket in non-ageing elastomer. TAIS MIGNON-EX products are IP66 rated. |
TAIS-EX INTERLOCKED SOCKET IN THERMOSETTING GRP ATEX 3P+E 63A 110V 4H IP66/67 EX CAT. 2D 3G
TAIS-EX INTERLOCKED SOCKET IN THERMOSETTING GRP ATEX 3P+N+E 63A 400V 6H IP66/67 EX CAT. 2D 3G
KEY FEATURES
- Explosion-proof design for hazardous areas
- Antistatic thermosetting GRP enclosure
- High protection rating: IP66
- Current rating: 16A to 63A
- Suitable for Zone 2, 21 & 22
- Interlocked safety mechanism
- Resistant to dust, water & harsh chemicals
- Industrial-grade durability
| Parameter | Details |
|---|---|
| Brand | Palazzoli |
| Product Type | ATEX Interlocked Socket Outlet |
| Material | Antistatic Thermosetting GRP |
| Protection Class | IP66 |
| Current Rating | 16A – 63A |
| Hazardous Zones | Zone 2, Zone 21, Zone 22 |
| Operation | Interlocked Safety System |
| Application |
Industrial Explosion-Proof Use |
Supplier In Saudi Arabia
