Product Details

TAIS

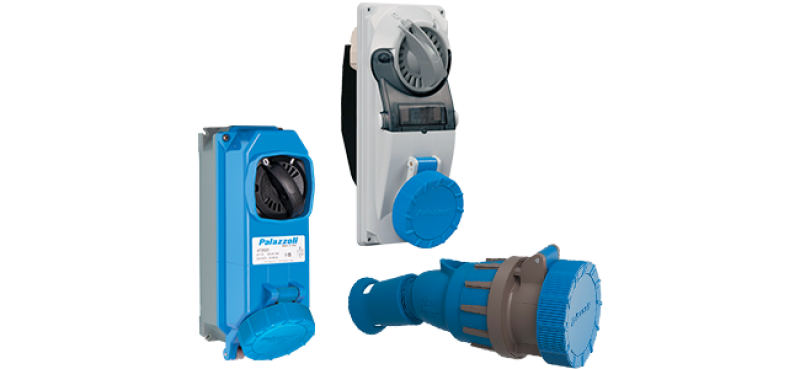

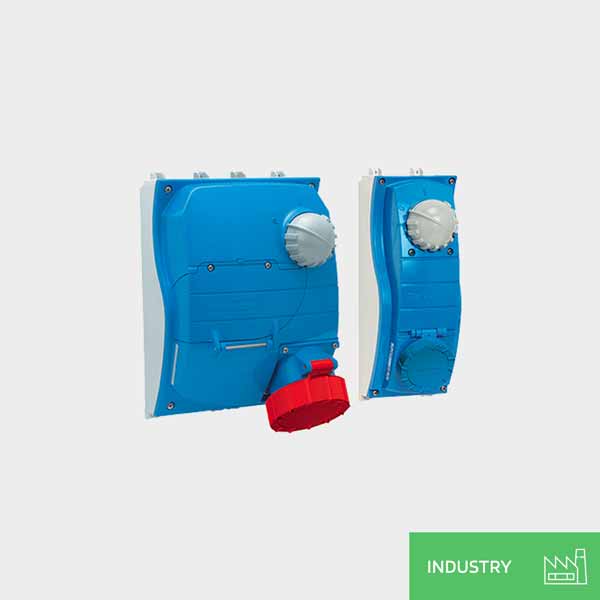

Interlocked socket-outlets and container connection systems, 32A,63A,125A IP66/IP67/IP68/IP69

The construction materials of Palazzoli interlocked socket-outlets are: thermoplastic, reinforced technopolymer, Palazzoli thermosetting resin and aluminium. This guarantees: safety performance and high resistance.

TAIS industrial low voltage interlocked socket-outlets are made in Palazzoli thermosetting GRP for heavy-duty applications, that comply with the IEC/EN 60309-1, IEC/EN 60309-2 and IEC/EN 60309-4 standards.

The system includes versions from 16A to 125A, with or without fuses, with MCB or with DIN rail that can be fitted with modular devices and with electrical interlock.

The interlock system is made with a steel bracket and the switch disconnector is certified to the AC3-AC23A category at rated current.

ALUPRES

Interlocked socket-outlets (M125) in marine-grade aluminium with fuse-holder for wall-mounting IP66/IP67/IP69

ALUPRES high-resistance interlocked socket-outlets are made of aluminium alloy. The casing is treated with ecological anticorrosion passivation with fluoro-zirconium and finished with hot polymerised non-toxic polyester paint.

The “heart” of ALUPRES is an isolator switch with the AC3-AC23A category at rated current that allows a safe operation even with highly inductive loads.

The handle is padlockable in positions 0 and 1 to prevent unauthorised access.

ALUMEX

250-320A - 400A sockets in steel for high amperages with electric interlock and MCCB for wall-mounting 50-60Hz IP65

ALUMAX low voltage switched industrial sockets with electrical interlock are a range of products in 15/10 steel sheet, finished with hot polymerised nontoxic polyester paint, equipped with an aluminium alloy socket for heavy-duty applications, from 250A up to 400A, with IP65 protection rating.

The coupling system of receptacles and plugs makes use of the Easy Contact technology for maximum contact performance over time and ensures easier connection and disconnection operations.

Alumax connections for high amperages are made of aluminium aluminium alloy and designed for heavy-duty applications. From 250A to 400A, IP67 rated can work with an operating voltage up to 1000V.

CAM-FIRE fire resistant rotary switches of 16A to 200A isolator switches made of aluminum alloy. This series is designed to ensure operational stability at 400°C for 120 minutes according to EN 12101-3.

The devices can be used to isolate fans and parts of the system that require operational continuity even in case of fire.

CAM-FIRE products are used in shopping centres, warehouses, underground car parks, tunnels, airports, hospitals, theatres, schools, and buildings.

Switches in thermosetting GRP for wall-mounting IP67

TAIS MIGNON small devices are a complete range of control, socket-outlet and signalling devices integrated in very compact modular boxes that can be easily combined one another. The offer is composed of devices for wall-mounting and panel-mounting.

Thanks to the IP67 protection rating, the TAIS MIGNON control devices can be used in areas subject to presence of liquids and humidity.

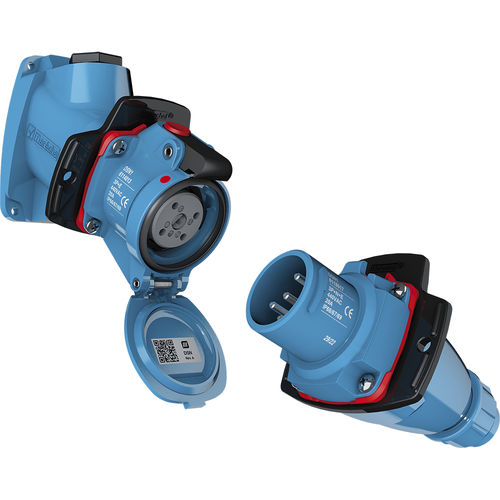

X-CEE industrial safety performance plugs and sockets are IP66/IP67/IP68/IP69 rated and guarantee safe use in the harshest environments thanks to the high thickness of the enclosure and the quality of the technopolymer. 2.436 customized solutions can be made by combining sockets and inlets with or without the rotoswitch according to IEC 60309. The X-CEE series is perfectly compatible with the TAIS series. This feature significantly facilitates the integration of Palazzoli's installations with convenience.

20° Angled Panel mounted inlets 50-60Hz IP66/IP67/IP68/IP69

X-CEE Safety Performance industrial plugs in technoplolymer from 16A to 125A, IP66/IP67/IP68/IP69

ROTOR products are made of reinforced technopolymer, IP69 rated (dust, immersion, water jets, hot water jets). Indirect clamping heavy duty terminals prevent overheating and cable breakage. The smart cable gland and broad entry cable clamping make this range suitable for use in the harshest environments.

Available in the versions from 16A to 125A: 2P+E, 3P+E, 3P+N+E.

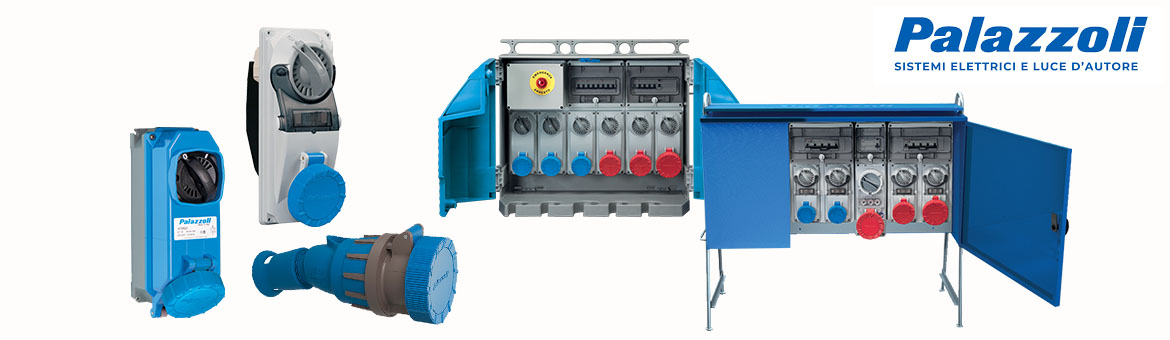

ENERGYBOX is a complete range of Assemblies for Construction Sites (ACS) pre-wired boards that can be wall-mounted or installed on a support. The panels are made in a sturdy and handy two-component technopolymer cabinet with a fire-resistant backrest, which allows them to be stored and reused in the next construction site.

We recommend to install these distribution boards in civil building sites, market areas, outdoor events, festivals and temporary electrical distribution

ROTOR Is an interlocked extension with rotoswitch and 20m of H 07 RN-F 2.5 sq mm cable for connection to the plug.
Protection rating IP66/IP67/IP69.

ENERGY GO Portable pre-wired ACS distribution boards in technopolymer are available with 3, 4, 6 sockets with MCB and RCD protection 50-60Hz IP66.

Equipment included: 4m of H 07 RN-F cable for connection to the plug. Insulated handle for transport. Stainless steel plates for wall-mounting.

Indispensable in confined conductive areas such as pits, wells, chimneys, tanks and metallic or humid narrow passages and confined excavations in the ground.

Isolator switches in aluminium alloy with windowed walls for wall-mounting 50-60Hz IP66/IP67

CAM-ALUPRES Rotary switches for wall-mounting in aluminium alloy for heavy duty applications comply with IEC/EN 60947-3 IEC/EN 60947-5-1 standards. The rotection rating is IP55 -IP66/IP67.

The impact resistance is IK10 (IK rating according to IEC/EN 62262).

This product series offers: selector switches, isolator switches, star-delta starters, deviators, inverters, Per questa serie sono disponibili: commutatori, interruttori sezionatori, avviatori stella/triangolo, two-way switches, reversing switches, pole changing switches and space unions.Palazzoli Supplier In Saudi Arabia
