Ground Enhancing Chemical Compounds are specially formulated conductive materials used to improve soil conductivity and reduce earth resistance in electrical grounding and earthing systems. These compounds create a stable, low-resistance path to ground, ensuring safe dissipation of fault current and enhanced protection for electrical equipment and personnel.

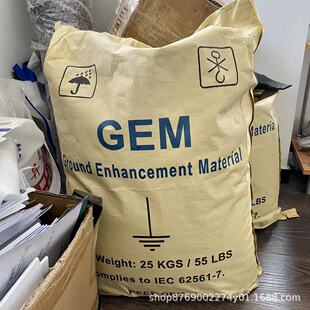

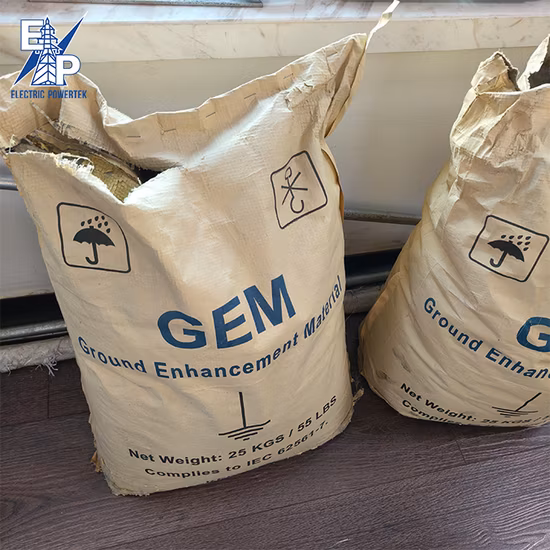

GEM Ground Enhancement Material
Ground Enhancement Material (GEM) is a superior conductive material that solves your toughest grounding problems. It is the ideal material to use in areas of poor conductivity, such as rocky ground, mountain tops and sandy soil. GEM dramatically reduces earth resistance and impedance measurements. Furthermore, GEM may reduce the size of the grounding system where conventional methods are unsatisfactory. Once installed, GEM is maintenance-free, not requiring periodic charging or the presence of water to maintain its conductivity.
Earth Enhancing Compound
Description: The Earth Enhancing Compound (EEC) is a specially formulated backfill material that improves the conductivity of grounding systems by reducing soil resistivity. It maintains its conductivity over time, even in dry conditions, and does not require frequent maintenance.
Specifications:
•
Composition: Conductive, non-corrosive, carbon-based material
•
Resistivity: < 0.1 Ω·m when mixed with water
•
pH Value: Neutral (6.5 - 8.0)
•
Moisture Retention: High water-retention capacity
•
Thermal Stability: Stable up to 1000°C
•
Environmental Impact: Non-toxic, non-leaching, and environmentally friendly
Standards:
•
IEEE 80: IEEE Guide for Safety in AC Substation Grounding
•
BS 7430: Code of Practice for Earthing
•
IEC 62561-7: Lightning Protection System Components (LPSC) - Requirements for Earthing Enhancing Compounds
Applications:
•
Grounding systems in high-resistivity soils
•
Electrical substations
•
Communication towers
•
Renewable energy installations (solar, wind)
•
Industrial and commercial facilities
Key Features:
- Improves soil conductivity and reduces earth resistance
- Non-corrosive and environmentally friendly
- Retains moisture for stable grounding performance
- Suitable for high-resistivity soil conditions
- Enhances safety of earthing systems
- Long-lasting and maintenance-free
- Easy to install around grounding electrodes
- Ideal for industrial and utility applications
Applications:
- Electrical Earthing & Grounding Systems
- Substations & Power Plants
- Telecom & Data Centers
- Solar & Renewable Energy Projects
- Lightning Protection Systems
- Industrial & Commercial Facilities
