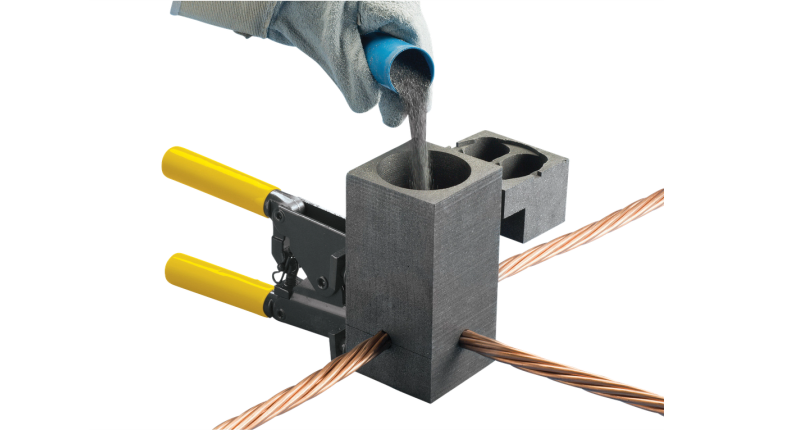

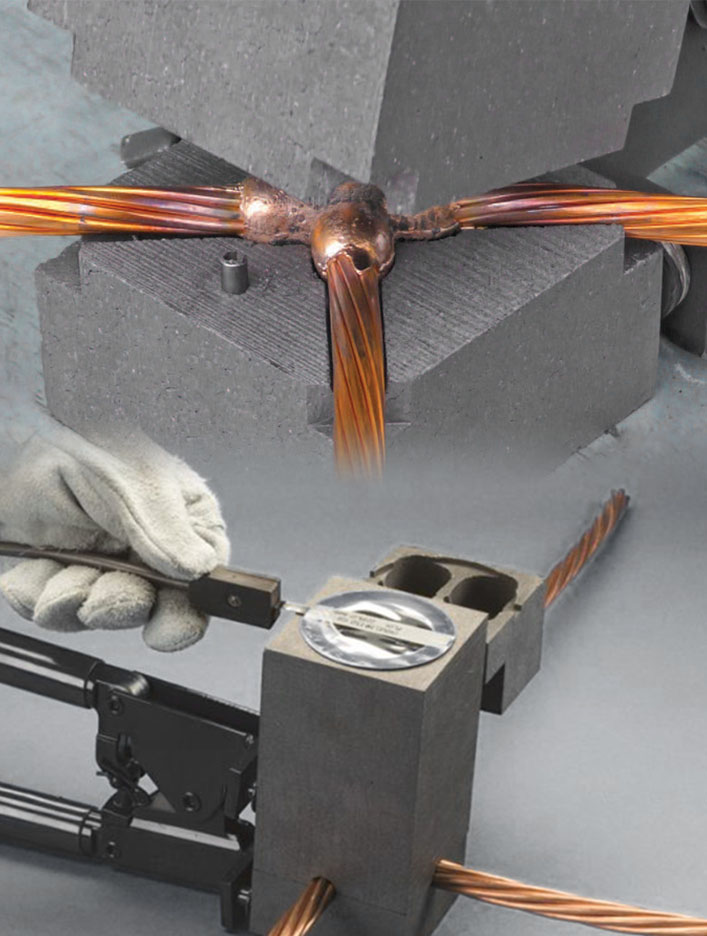

Exothermic Welding Molds are precision-engineered molds used to create permanent, high-conductivity electrical connections through the exothermic welding process. Designed for grounding and bonding applications, these molds ensure molecular bonding between conductors, resulting in low-resistance, corrosion-resistant, and maintenance-free connections.
Exothermic” is a chemical term used to describe a reaction that produces heat.
INTRODUCTION
Exothermic welding, also known as “thermit welding” or “aluminothermic welding” is a welding process for permanently joining materials (usually copper conductors) that employs an exothermic reaction. The exothermic reaction requires no external heat or a power source. All that is required is a spark to initiate the reaction"
| thermic” is a chemical term used to describe a reaction that produces heat. INTRODUCTION Exothermic welding, also known as “thermit welding” or “aluminothermic welding” is a welding process for permanently joining materials (usually copper conductors) that employs an exothermic reaction. The exothermic reaction requires no external heat or a power source. All that is required is a spark to initiate the reaction" |
 |

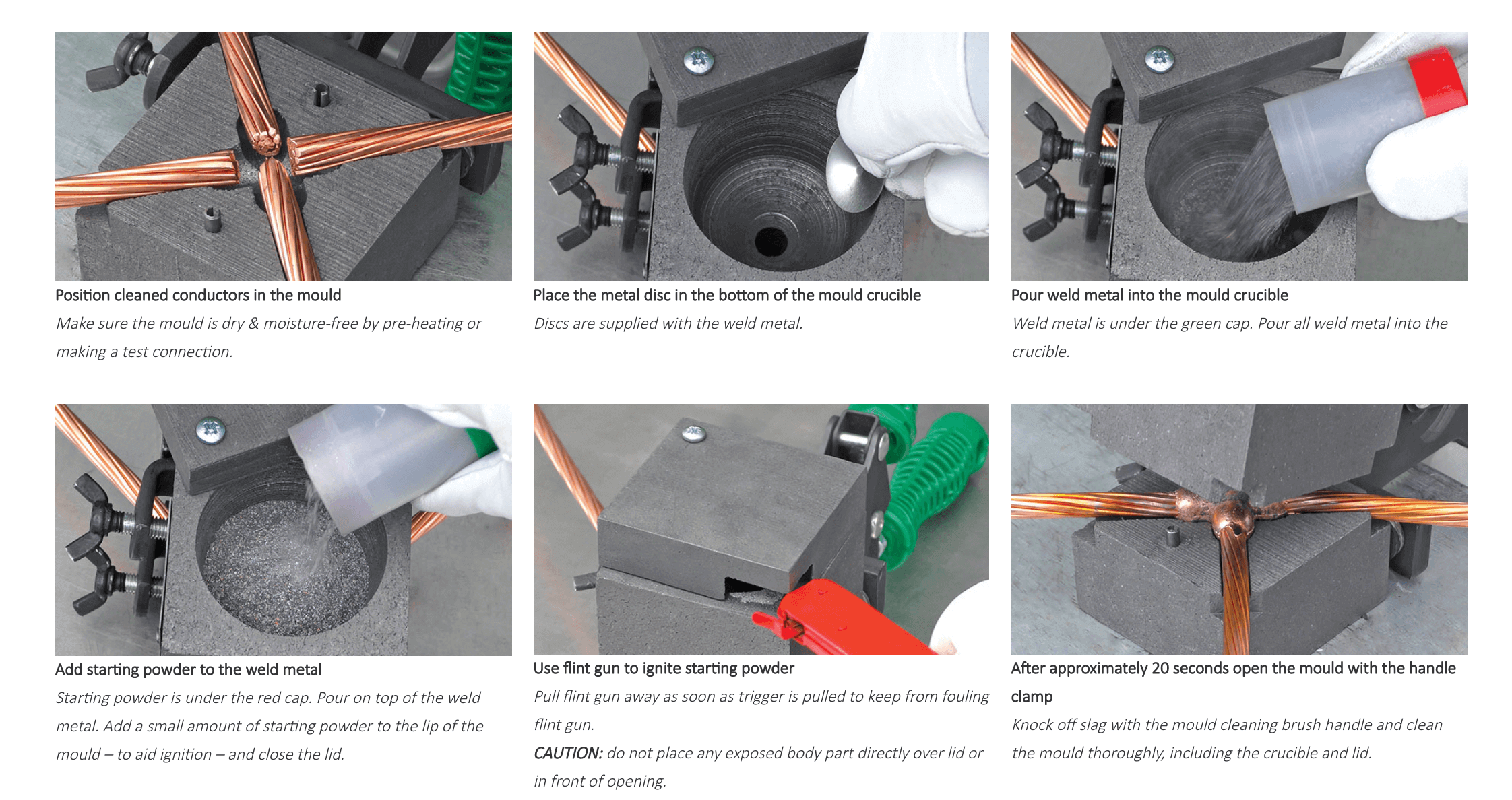

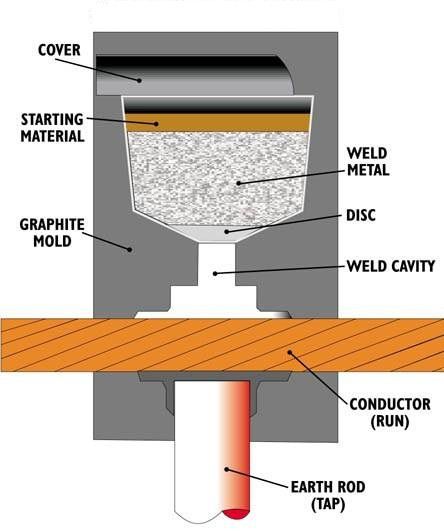

| The Exothermic reaction occurs between copper oxide and aluminium powder (contained within the weld metal) creating molten super-heated copper and an aluminium oxide slag. When an ignition spark comes into contact with the weld metal, it causes an exothermic reaction within the weld metal, melting and separating the metals. The aluminium rises to the top of the connection creating a slag leaving the molten copper to flow around the joint, creating the weld. The KingsWeld exothermic connection is a permanent, maintenance-free weld that will not loosen overtime or deteriorate with age. The connections’ current carrying capability is equal to or greater than that of the conductors being joined. In other words, there is no increase in resistance in an exothermically welded connection, unlike in most pressure type (bolt/crimp) connections. |
 |
| Introduction to exothermic welding Throughout the world, exothermic welding has been shown to be the best choice where safety, reliability, current carrying capacity and longevity are critical. The advantages of exothermic welding 1 The current carrying capacity of the connection is greater than or equal to that of the conductor 2 Has a lower electrical resistance than a mechanical connection 3 Does not deteriorate with age 4 Does not loosen over time 5 Can withstand repeated high current surges without deterioration 6 Does not require an external power source 7 Used to weld copper, copper alloys, copper bonded steel, various steel alloys, including stainless steel 8 Quick and easy to install 9 Exceptional corrosion resistance due a very high copper content (97%+) 10 Fusion temperature is in excess of 2000°C forming a molecular bond This adds up to a superior connection when compared to mechanical or pressure type (crimp) connectors. The KingsWeld exothermic connection is the best choice, especially in safety critical environments where reliability, longevity and current carrying capacity are paramount |
 |
| Introduction to exothermic welding. Throughout the world, exothermic welding has been shown to be the best choice where safety, reliability, current carrying capacity and longevity are critical. The advantages of exothermic welding 1 The current carrying capacity of the connection is greater than or equal to that of the conductor 2 Has a lower electrical resistance than a mechanical connection 3 Does not deteriorate with age 4 Does not loosen over time 5 Can withstand repeated high current surges without deterioration 6 Does not require an external power source 7 Used to weld copper, copper alloys, copper bonded steel, various steel alloys, including stainless steel 8 Quick and easy to install 9 Exceptional corrosion resistance due a very high copper content (97%+) 10 Fusion temperature is in excess of 2000°C forming a molecular bond This adds up to a superior connection when compared to mechanical or pressure type (crimp) connectors. The KingsWeld exothermic connection is the best choice, especially in safety critical environments where reliability, longevity and current carrying capacity are paramount |
 |
 |
 |
 |
 |
 |
 |
 |
| Exhothermic Mold | Exhothermic Powder | Flint Gun | Card Cloth Brush | Handle clamp for mold | Mold Scraper | Fine Cleaning Brush |
Key Features:
- Creates permanent molecular electrical connections
- High conductivity with low resistance
- Made from durable high-grade graphite
- Corrosion-resistant and maintenance-free connections
- Suitable for cable, rod, plate & busbar connections
- Long service life with repeated use capability
- Reliable performance in harsh environments
- Ideal for grounding and lightning protection systems
Applications:
- Electrical Earthing & Grounding Systems
- Substations & Power Plants
- Telecom & Data Centers
- Railway & Infrastructure Projects
- Lightning Protection Systems
- Industrial & Utility Installations
Supplier In Saudi Arabia
